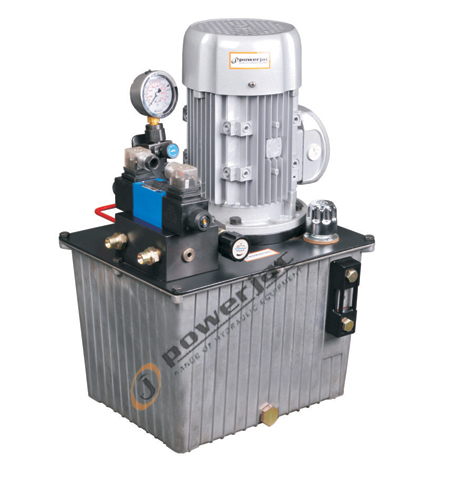

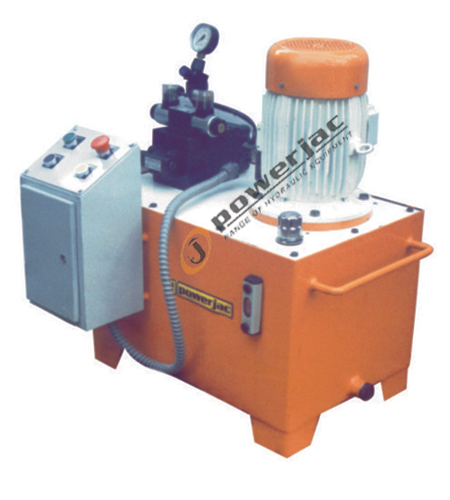

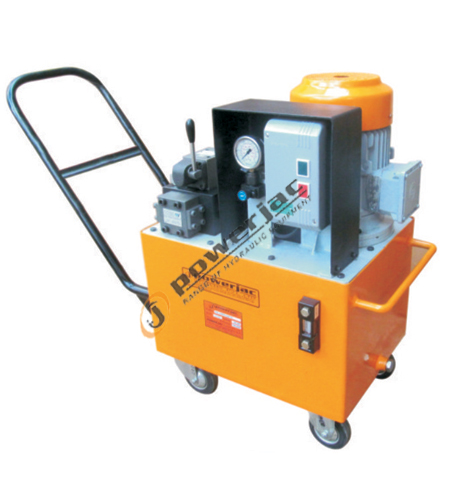

Hydraulic Power Packs (25 to 700 Bar)

We are Manufacturer, Supplier, Exporter of Hydraulic Power Packs For CNC Machines, Hydraulic Jacks, Spring Return Flat Jacks, Pocket Jacks and our set up is situated in Belgaum, Karnataka, India.


HYDRAULIC POWER PACKS
HYDRAULIC POWER PACKS
HYDRAULIC POWER PACKS

Features / Benefits :

Various models to suit varied applications
100% interchangeability for optional controls
Designed for continuous duty applications
Custom built power packs offered on request




GET A QUOTE
Model
Flow (Lpm)
Drive (HP)
Oil Cap (Ltr)
Optional Controls
MTP Special Series for Machine Tool -25 Bar pressure. Gear Pump, Piston Pump / Electrical Drive 440V AC
MTP-1
4.8
1
30
Solenoid Valve (SV) Additional Gadget Available on request
MTP-3
12.7
3
45
MTP-5
20
5
60
MTP-7
30
7
120
MTP-10
40
10
250
VLP Series -100 Bar Pressure, Gear Pump / Electrical Drive 440V AC
VLP-1
4.8
1
30
Solenoid Valve -(SV) Flow Control -(FC) Additional Gadget Available on request
VLP-3
9
3
45
VLP-5
16
5
60
VLP-10
30
10
120
VLP-12
40
12
250
LPP Series -180 Bar Pressure, Gear Pump / Electrical Drive 440V AC
LPP-3
4.8
3
30
Solenoid Valve (SV) Additional Gadget Available on request
LPP-5
9
5
45
LPP-10
16
10
120
LPP-20
30
20
120
MPP series -300 Bar Pressure, piston Pump /Electrical Drive 440V AC
MPP-1
1.5
2
20
Solenoid Valve (SV) Additional Gadget Available on request
MPP-3
2.6
3
30
MPP-5
4.2
5
45
HPP series -550 Bar Pressure, piston Pump /Electrical Drive 440V AC
HPP-2
1
2
20
Manual Valve (MV) Solenoid Valve (SV-IMP) Additional Gadget Available on request
HPP-5
2.6
5
30
HPP-7.5
3.7
7.5
45
VHP Series -700 Bar Pressure, Piston Pump / Single Discharge / Electrical Drives 440V AC
VHP-2
1
2
20
Manual Valve (MV) Single Phase Solenoid Valve -(SV-IMP) Additional Gadget Available
VHP-3
1.5
3
30
VHP-5
2.6
5
50


VHPD Series -700 Bar Pressure, Piston Pump / Double discharge / Electrical Drive 440V AC
Model
Pressure Rating (Bar)
Flow (Lpm)
Drive
Oil Tank capacity (Ltrs)
Optional Controls
  1st Stage 2st Stage 1st Stage 2st Stage (HP)   Solenoid Valve - (SV-IMP)
Manual Valve - (MV)
VHPD-2 50 700 3.5 1 2 40
VHPD-3 50 700 4.0 1.5 3 50
VHPD-5 50 700 5.2 1.5 5 70
Model Flow (Lpm) Drive (HP) Oil Capm (Ltr) Weight Optional Controls
Petrol Engine -500 Bar Pressure, Piston Pump / Diesle Drive
PEP-1 5.0 5.5 40 60 Manual Valve (MV)

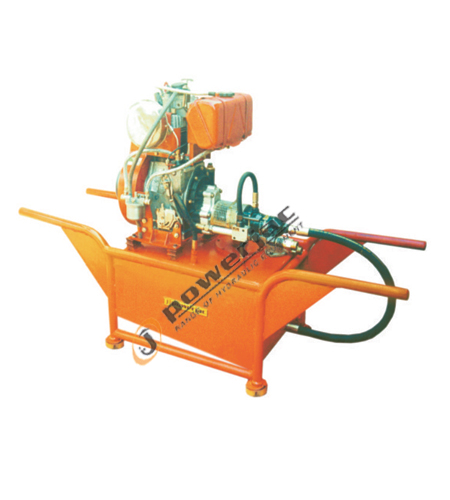

Diesel Engine -500 Bar Pressure, Piston Pump / Diesel Drive
DEP-1 5.0 6.3 40.0 70 Manual Valve (MV)
